N727

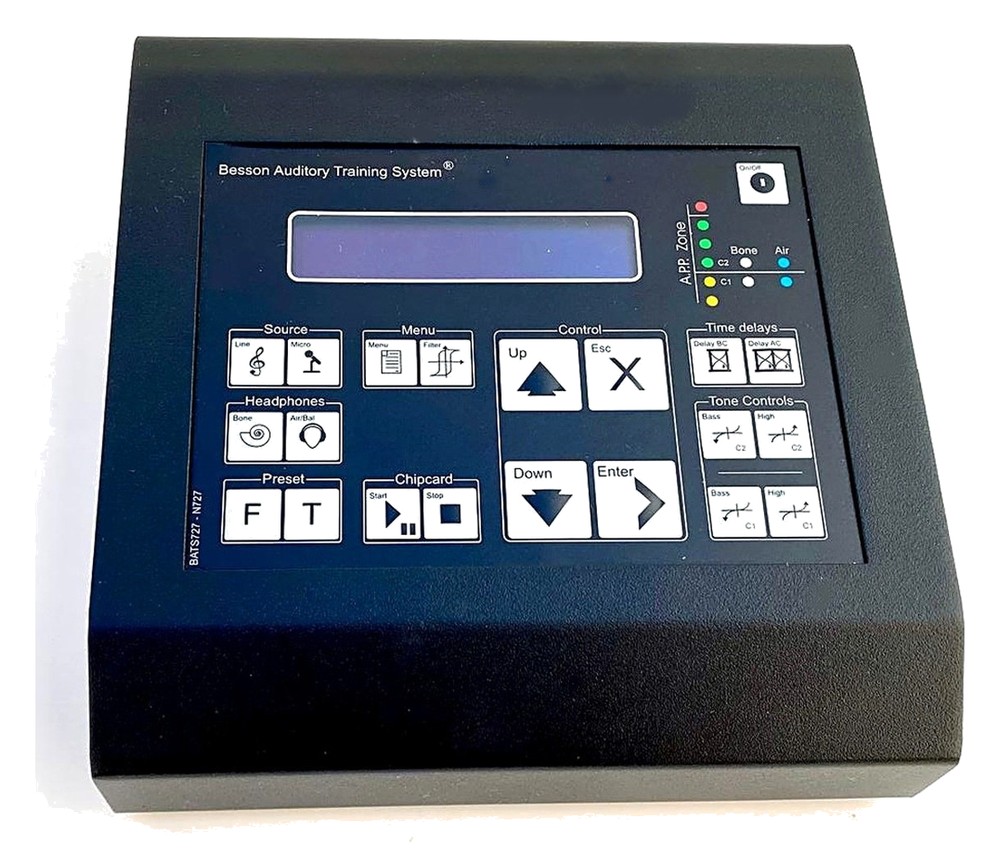

Ultra-compact tabletop Electronic Ear (under 15 cm) with smart card, for 1 headset - precise, versatile and portable.
This high-end tabletop model, of great precision, features a parametric filter covering frequencies from 50 Hz to 9000 Hz, in 2 Hz steps, as well as a card reader/writer.
Signal processing is 100 % analogue, equipped with real-time switching, in a tabletop format, with the ability to connect 1 headset using an individual station.
Ideal for individual, versatile and portable use.
Technical specifications
| Filtering | Analogue parametric, 4-pole, 50 Hz – 9 000 Hz, 2 Hz steps, adaptive digital control (AI), high-pass |
|---|---|
| Signal processing | 100 % analogue |
| Filter noise level | < –100 dB below normal operating level |
| Frequency response | 20 Hz – 40 kHz, ± 0.25 dB |
| Distortion (THD + N) | < 0.002 % at 1 kHz (–1 dBFS) |
| Signal-to-noise ratio | 113 dB |
| Headsets | 1 headset with bone transducer, via individual station |
| Inputs | Unbalanced line 3.5 mm jack (–10 dBV) · balanced mic XLR 3-pin (–48 dBu) |
| Output level | Nominal +4 dBu · max +19 dBu (0 dBFS) · 15 dB headroom · unbal. +5 dBV (0 dBFS) |
| Outputs | 1× XLR 5-pin + 1 3.5 mm jack (air/balance/bone) · 8 Ω to 5 kΩ · +4 dBu into 100 Ω · max 250 mW into 8 Ω |
| Power supply | 9 VDC (100–240 V) · 4 W |
| Dimensions | 141 × 139 × 51 mm · 0.990 kg · steel case 400 × 255 × 109 mm (2.1 kg) |
| Certifications | CE · RoHS |
